2000x4 10 Pieces Steel Coil Slitting Machine 50-120M/MIN 1 Year Warranty

Name: 2000x4 10 Pieces Steel Coil Slitting Machine 50120MMIN 1 Year Warranty
Brand: ZTZG
Price: 1 USD

Quality 2000x4 10 Pieces Steel Coil Slitting Machine 50-120M/MIN 1 Year Warranty wholesale

Brand Name : ZTZG

Model Number : 1500x4

Certification : ISO9001

Place of Origin : China Hebei Shijiazhuang

MOQ : 1

Price : Negotiable

Payment Terms : T/T, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/year

Delivery Time : 120 days

Packaging Details : All mechanical equipment is nude packing and electrical parts are packed in wooden cases

Cutting Width (mm) : 6000 - 12000 mm

Cutting Speed(m/min) : 50-120M/MIN

Voltage : 380v/50hz/3ph

Core Components : PLC Gear

Horizontal shears : adopt machinery pneumatic clutch style

Dimension(L*W*H) : 25X10mm

Warranty : 1 year

Stacking : adopt pneumatic nesting stacking

Function : metal processing

Coil Weight (T) : 30T

Contact Now

2000x4 Automatic Carbon Steel Slitting 10 Pieces Steel Coil Slitting Machine

Products Description

Introduction of steel sheet roll slitting machine :
roll slitting machine is a lengthways cutting production line, for cutting metal sheet stirp.roll slitting machine can uncoil metal sheet strip coil, then slit(cut) the metal sheet strip longitudinal, then rewind the slitted metal sheet strips, for getting narrow metal sheet strip coils.roll slitting machine is for metal sheet strip coil cutting service center, press machine stamping punching, metal sheet strip processing,etc.

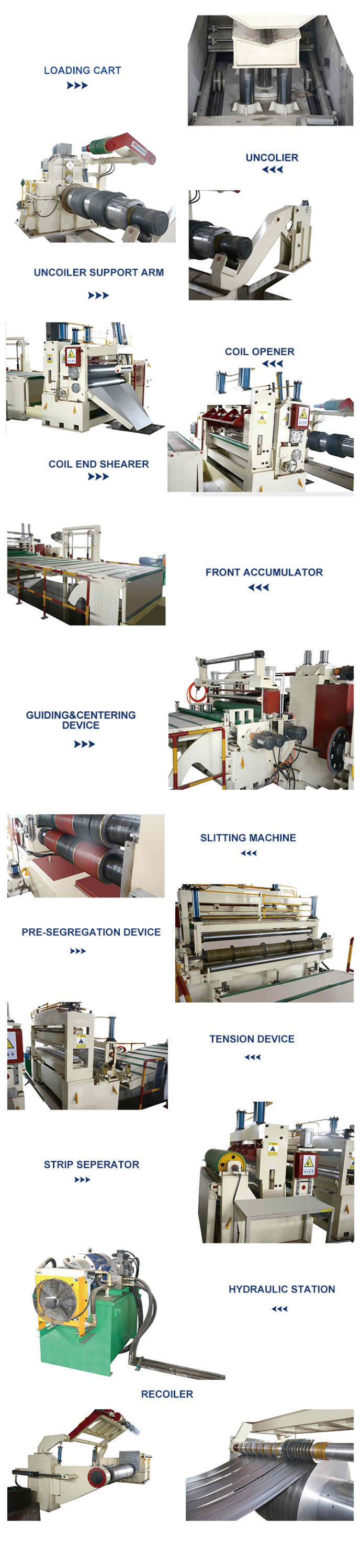

details of roll slitting machine

Hydraulic de-coiler with car

It adopts the hydraulic oil cylinder to make the decoiler expandable and fit to the inner diameter of coils. It is equipped with the cantilever.

inner diameter: 508mm .

The Max width:1500mm

The capacity is 15Tons (max)

pre-leveling machine

It can straighten the rough plate and guide strip right after entering the process

Mechanical structure: it is composed of two rows leveling roller, two rows middle supporting roller, 2 groups of supporting rollers, driving device, 2 pinch rollers and frame. Each roller both of ends drive with roller pin bearing,

the working rollers can be adjusted the gap electrically which is controlled by 2 hand wheels to ensure the leveling quality.

Driving model: driven by 55kw frequency control motor

Roll process:hardened HRC55-60 -finishing grinding- hard chromium plating

Automatic lubrication system

Servo precision straightening machine

It is controlled by servo electromotor and used to regulate for high speed feed and precise length control.

The operation is done at the control table with programmable control.

Drive model: 15 KW servo motor

High speed Cutter

1). The width range :200--1300mm

2). The precious of the width:±1mm

3). The speed of slitting:50m/min

4). The width can be change.

5). Material of the slitting: Cr12MoV.

Hardness of slitting blade:HRC5860.

6).slitting:2~3mm 6 lines.

7).quantity of blades:10 sets .

8).Width of side scrap:3-15mm

9).The precious of side scrap:±0.5mm

10).Quantity of side scrap:2 strips

11).Power of the slitting:37KW,1000r/min,with ZQ750 Reducer.

Pneumatic stacker device

The plates are piled pneumatically and PLC controls the lifting.

Three 0.75kw motors drag to adjust the width and the length.

It is equipped with the wind device which cooperates with the high pressure fan to prevent the sheets from friction.

stress of air source: 0.4-0.6Mpa.

The capacity:1m³ /min.

Electrical system

1). Screen:3.2inch button screen

2). PLC:Delta

Features

Uncoiler: gear box lubrication: concentrated thin oil lubrication
Uncoiler, recoiler: shaft: 42CrMo forgings normalizing treatment; after rough turning, thermal refining HB290-320.
Gearbox gear: material 20CrMoTi, rough turning thermal refining HB245-255, gear surface high frequency quenching, hardness HRC48-52. All gear tooth surface have gear grinding treatment.
Arc plate: ZG45 cast steel, thermal refining, HB250-275, chrome plated surface polishing treatment
Main bearings adopt imported bearings.

2000x4 10 Pieces Steel Coil Slitting Machine 50-120M/MIN 1 Year Warranty

FAQ

Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T and L/C.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for centering jumpiness.
 (3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
 Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
 A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the Middle East, Europe, and South America throughout the years. Our innovative designed production line and each unit of the production line practical.
